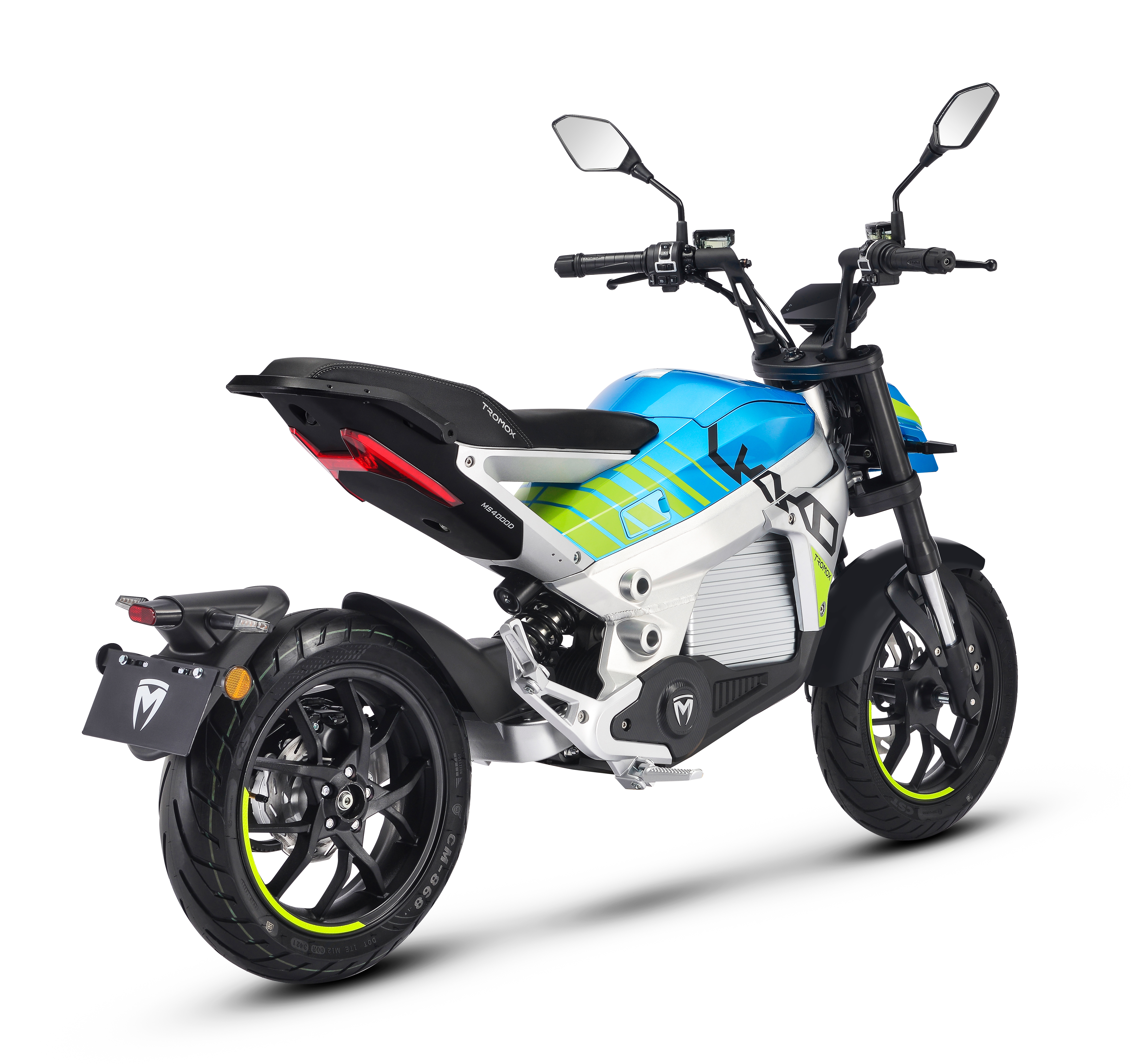

Ukko S
Smart Electric Motorcycle
The Silent Strike
Instantly Fascinated

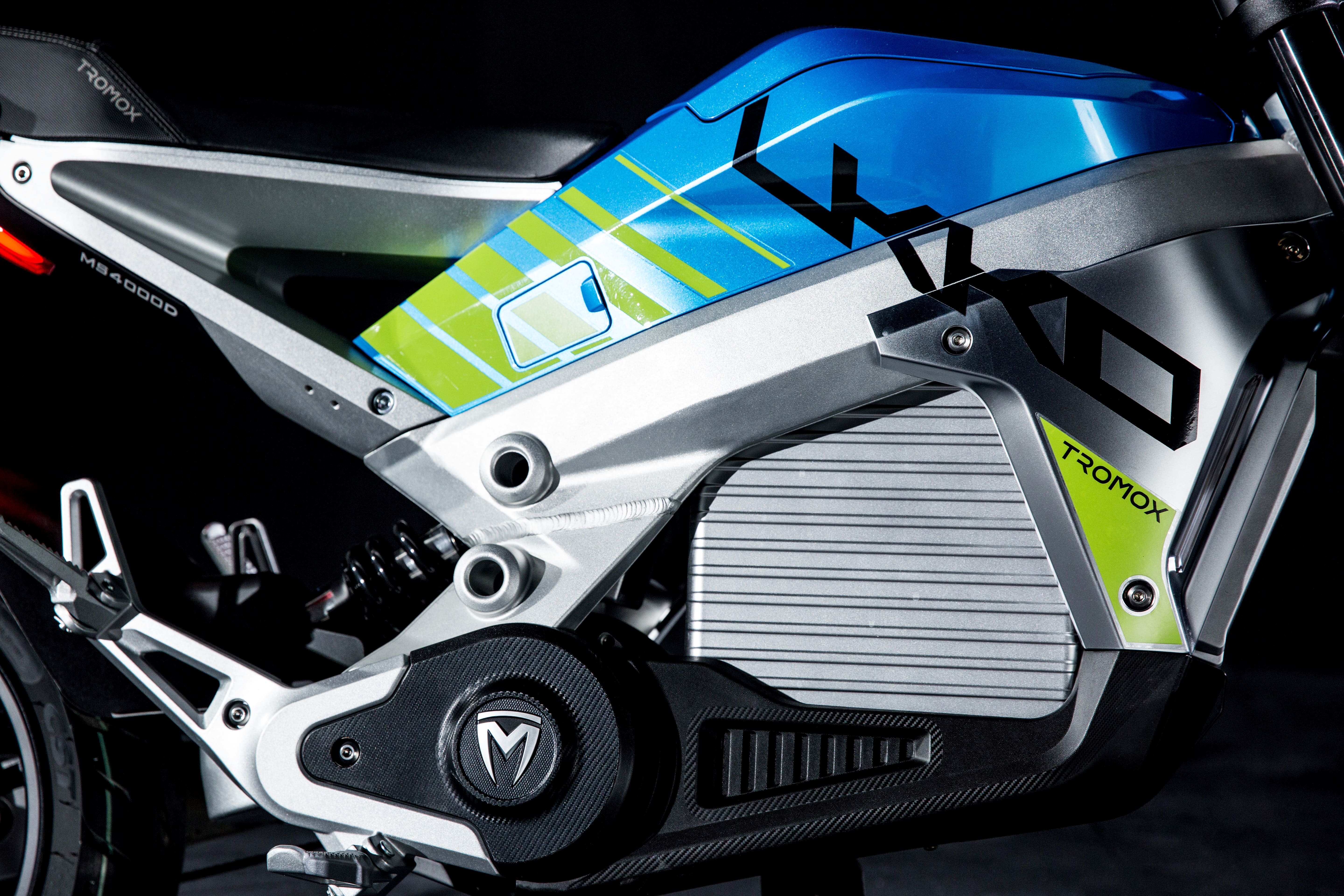

All Aluminum Alloy Cradle Frame Design1000000+ Times Of Vibration Fatigue Test. Lighter But Full Of Power
Nude Aesthetics Headlight
Adopt waterproof IP67 dual-lens LED headlights with high lens optical glass and high penetrating LED strip. With a lower energy consumption, the headlight brings a stronger lighting effect and a wider lighting area.
Dual Camera Front and Rear
1080P dashboard cam. The WDR technology is used to record the road conditions around the vehicle and monitor parking conditions by providing a clear picture of the movement even at night.
Excellent Climbing Performance
Faster speed-up performance
8Kw
Peak Power180N.m
Maximum Torque22°
Climbing Ability
160km
Single Charge Battery Range
The whole vehicle adopts an automotive CAN system

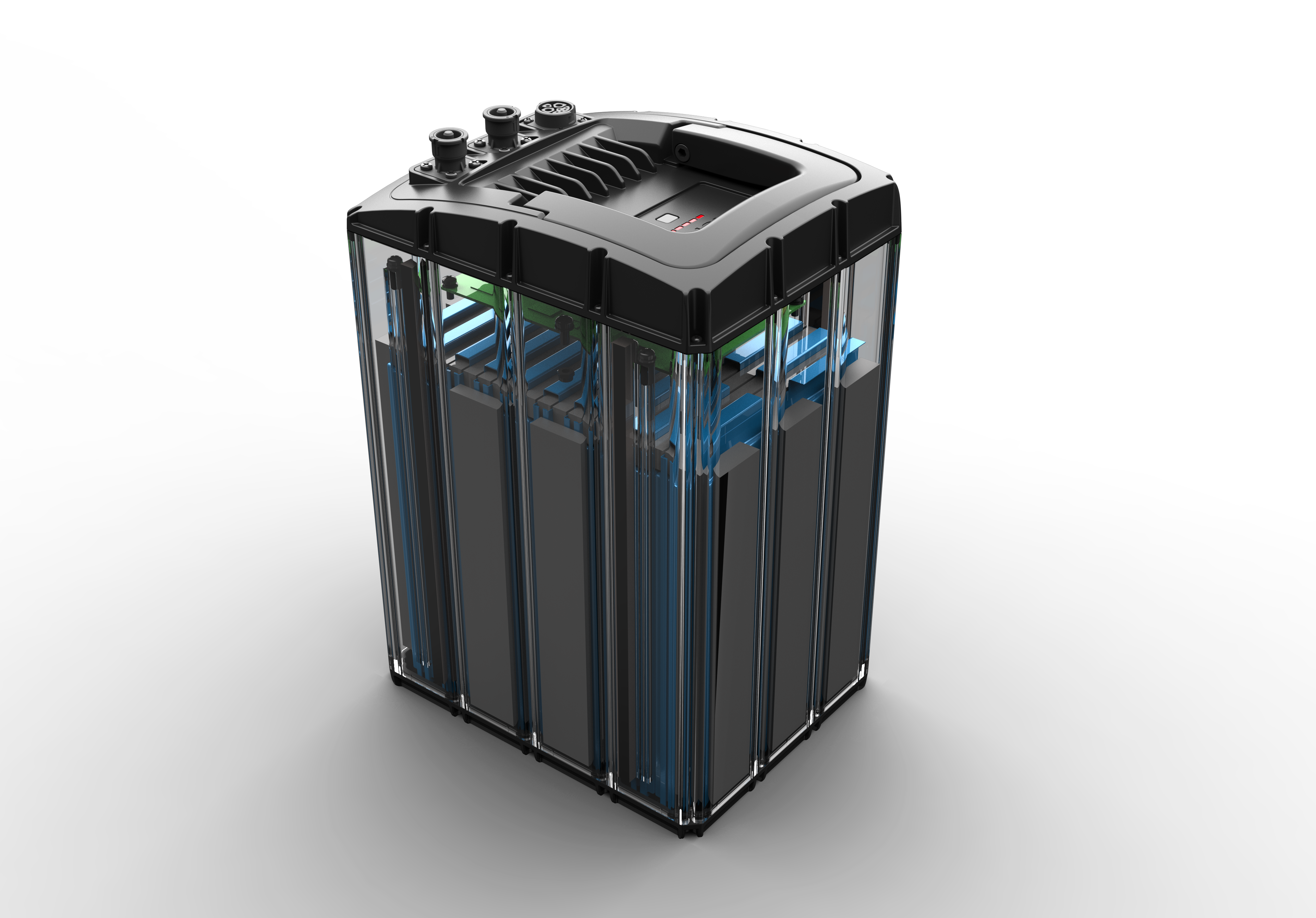

The functions of the BMS system are fully strengthened to protect the safety of cells in all aspects

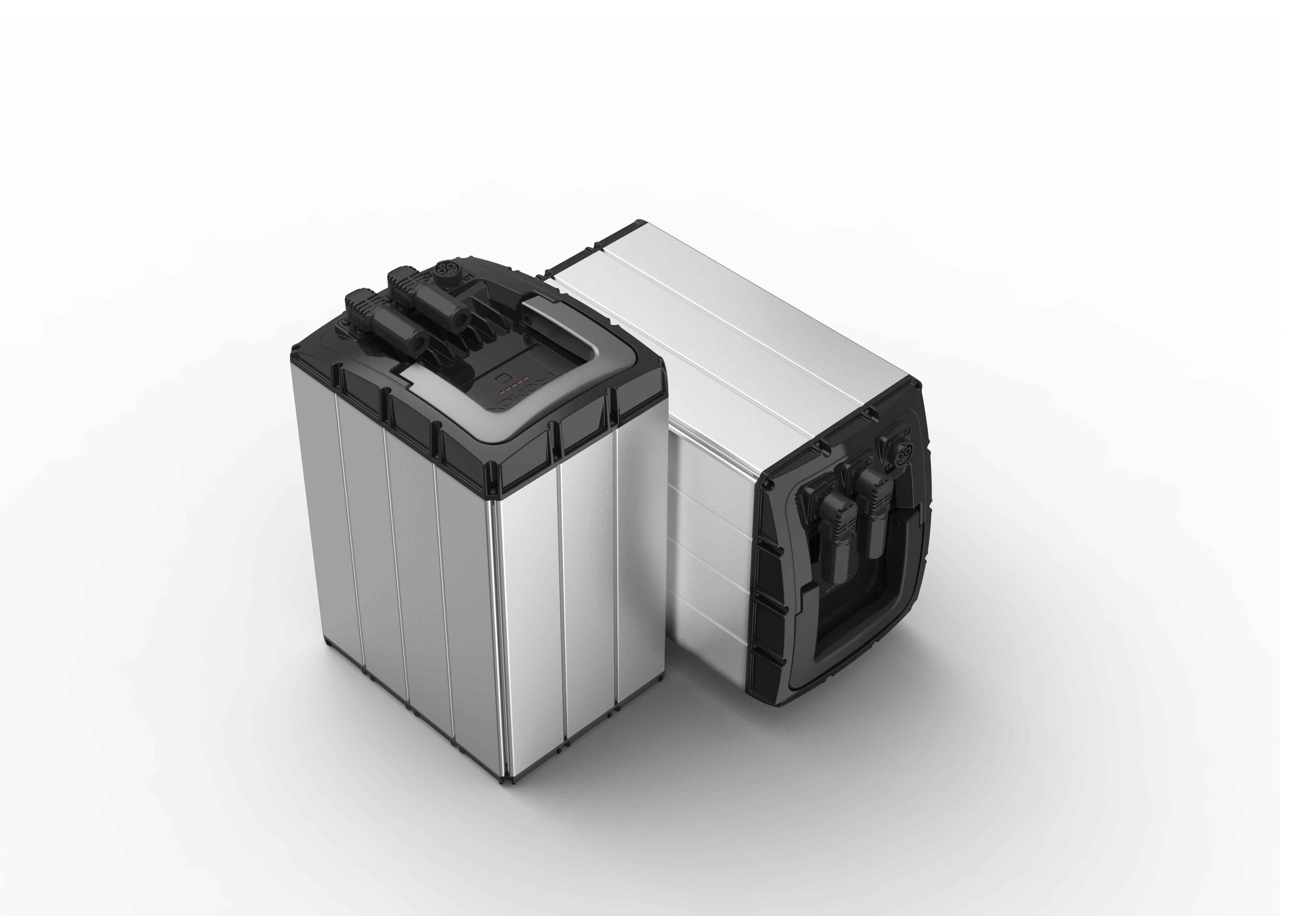

Battery capacity: 72V55Ah
Lifespan: 5 years.
The battery casing is made of all aluminum material

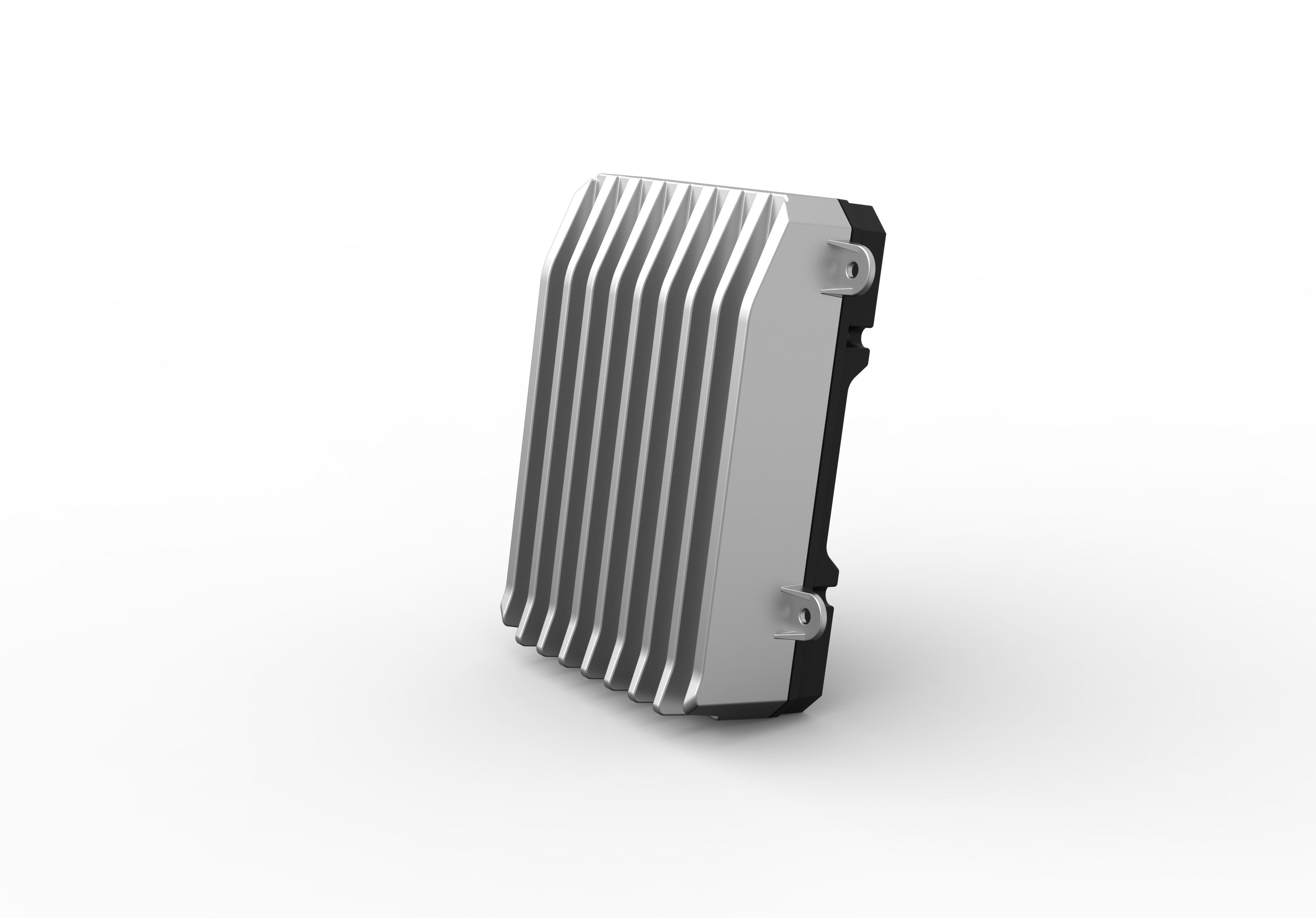

Independently R&D FOC Vector Controller
The design concept refers to the automobile standard, and the FOC vector controller is developed independently. The chip adopts STMicroelectronics, MOS tube adopts imported materials. The control of torque ring and speed ring matches racing-grade requirements. Starts smoothly and has good acceleration performance.

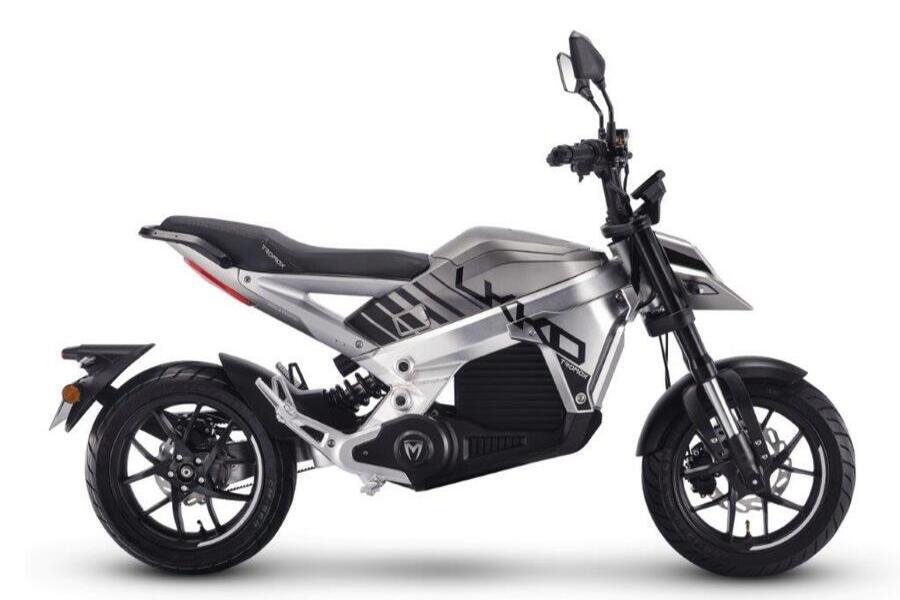

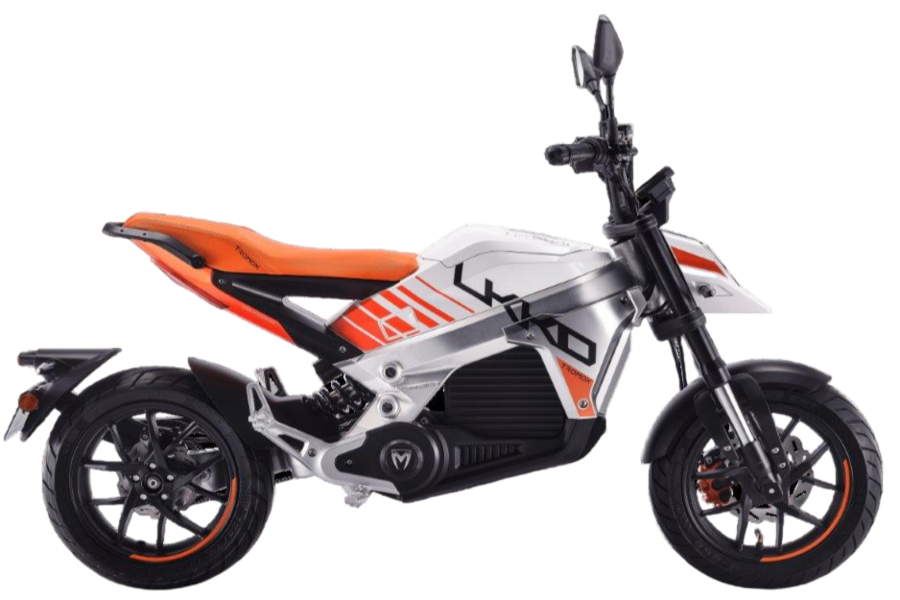

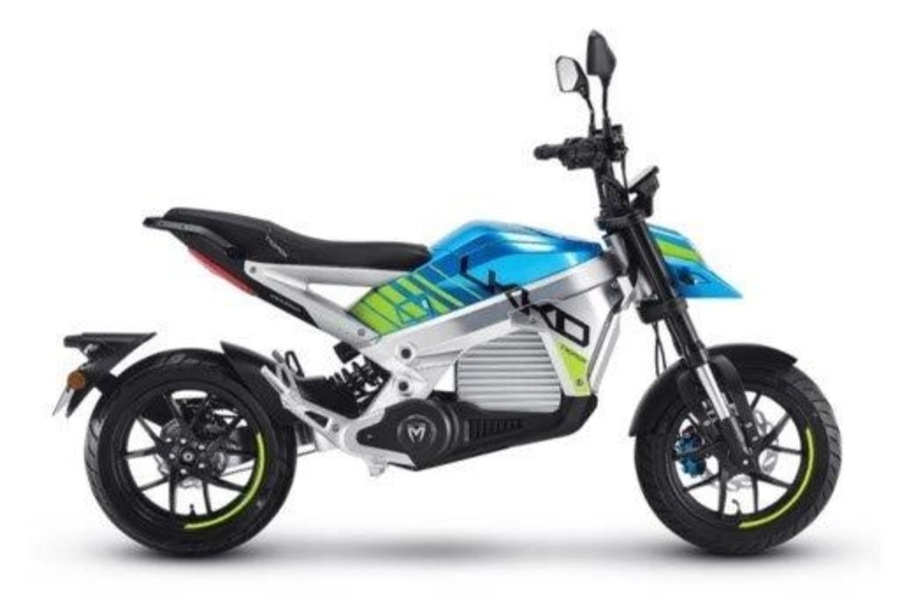

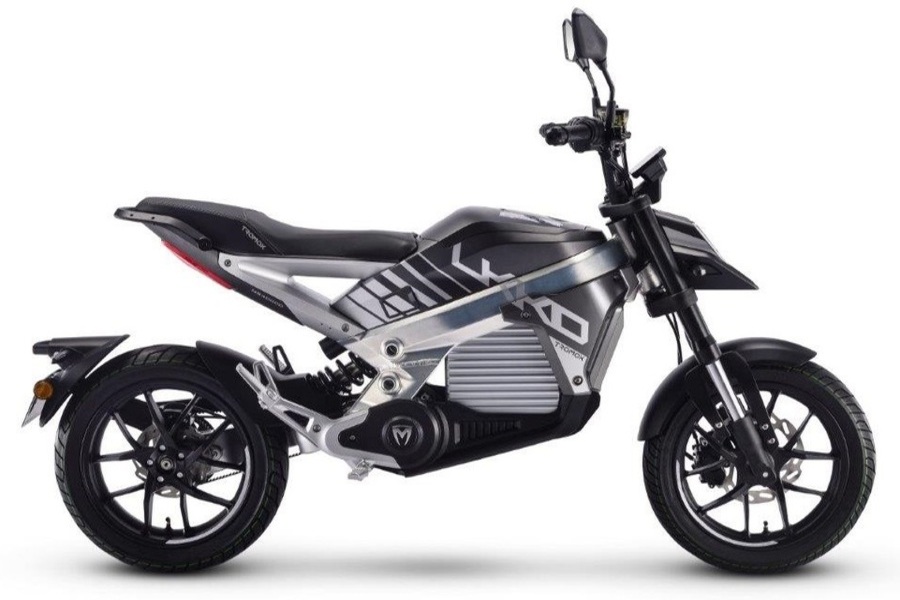

Color Schemes
Ukko S Electric Motorcycle Specifications
| Specifications | Ukko S Lite | Ukko S | Ukko S Pro |
|---|---|---|---|
| Size(L×W×H) | 1820mmX800mmX1035mm | 1820mmX800mmX1035mm | 1820mmX800mmX1035mm |
| Wheelbase | 1290mm | 1290mm | 1290mm |
| Front shock absorber | Inverted spring hydraulic damping type | Inverted spring hydraulic damping type | Inverted spring hydraulic damping type |
| Rear shock absorber | Middle spring damping type | Middle spring integral air bag damping type | Middle spring integral air bag damping type |
| Tyre | Front: 100/80-14 Back: 120/70-14 |
Front: 100/80-14 Back: 120/70-14 |
Front: 100/80-14 Back: 120/70-14 |
| Homologation | EEC l3e-A1, Euro5 | EEC l3e-A1, Euro5 | EEC l3e-A1, Euro5 |
| Seat Height | 770mm | 770mm | 770mm |
| Braking system | CBS | CBS | CBS |
| Rear fork | Aluminum alloy, double swing arm | Aluminum alloy, single swing arm | Aluminum alloy, single swing arm |
| Drive | Chain | Belt | Belt |
| Intelligence system | BT VCU | 4G VCU | 4G VCU |

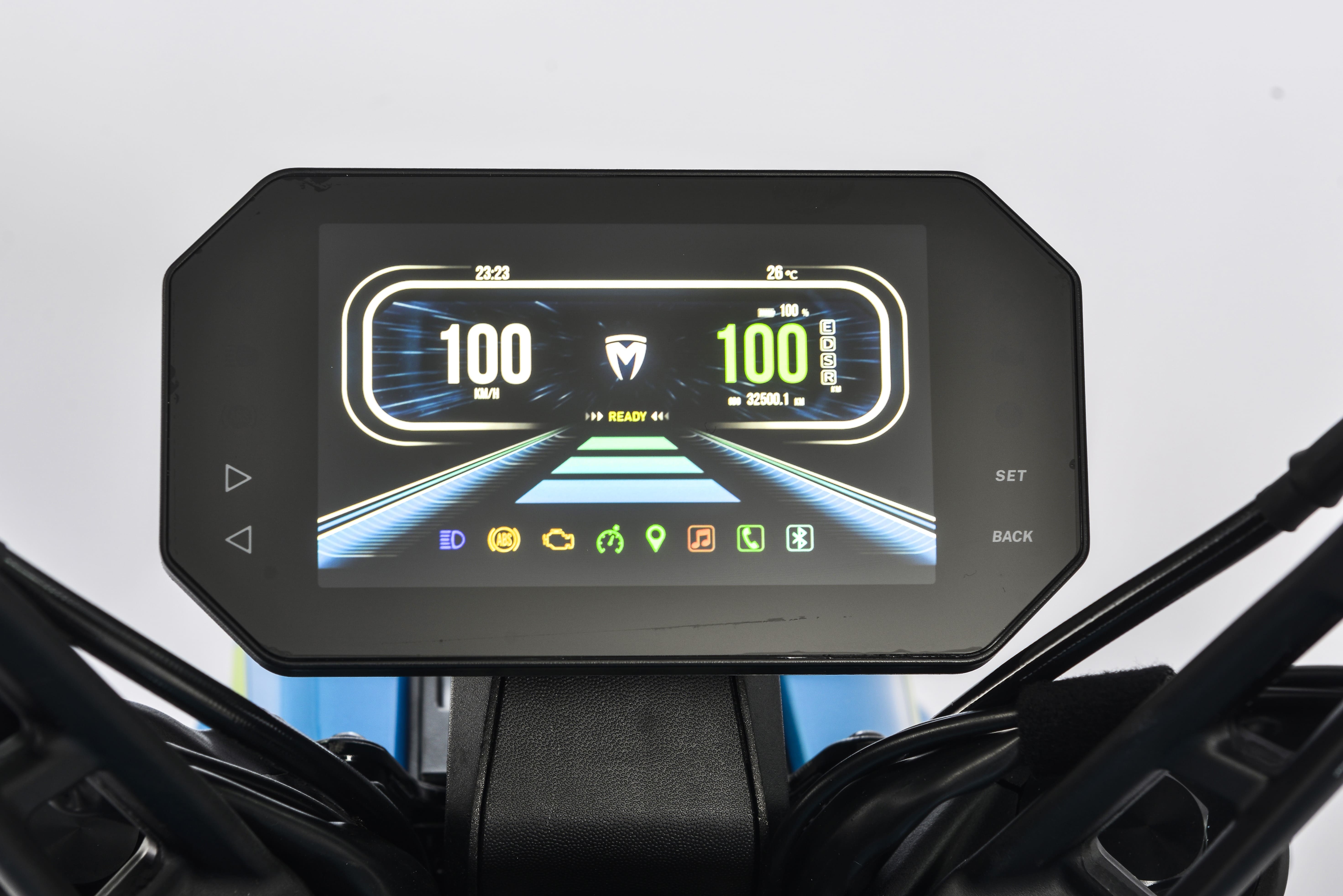

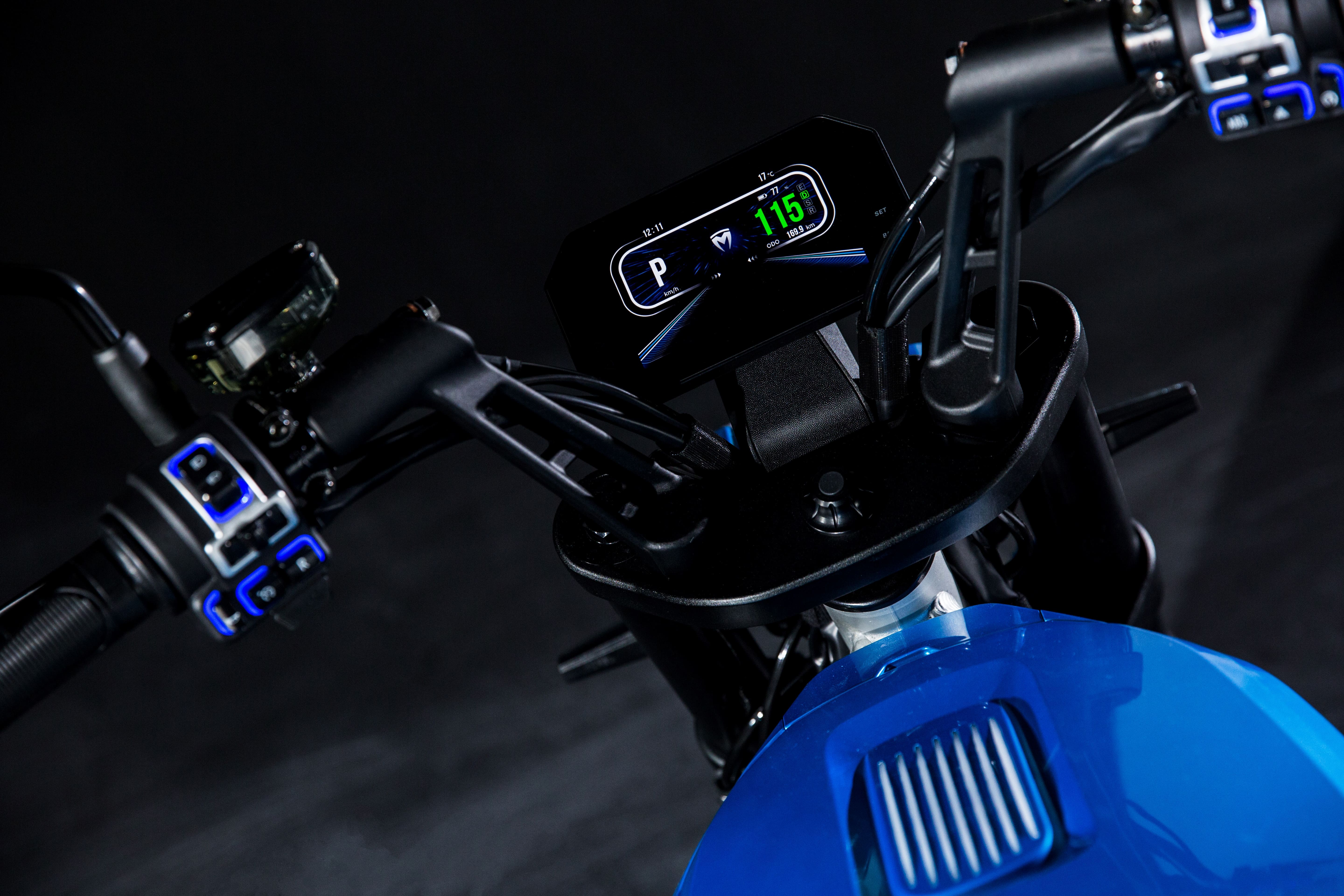

| Dashboard | VA screen | 5.5“ TFT Screen | 5.5“ TFT Screen |
| Motor | 4kW with single-reduction gearbox, peak 8kW | 4kW with single-reduction gearbox, peak 8kW | 4kW with single-reduction gearbox, peak 8kW |
| Controller | FOC | FOC | FOC |
| Battery | 72V 55Ah | 72V 55Ah | 72V 55Ah |
| Charger | 10A | 10A | 10A |
| Camera | No | No | Dual Camera |
| Charging Duration | 5.5h | 5.5h | 3.5h |
