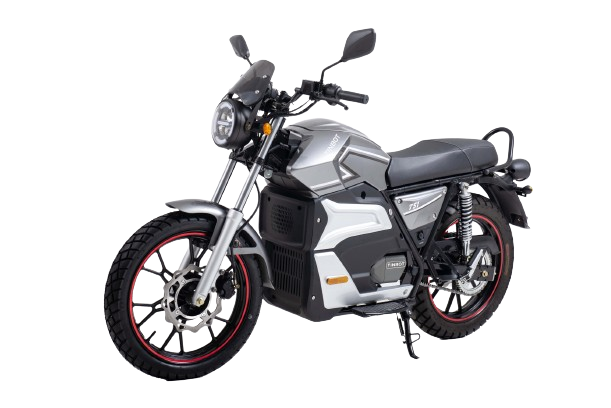

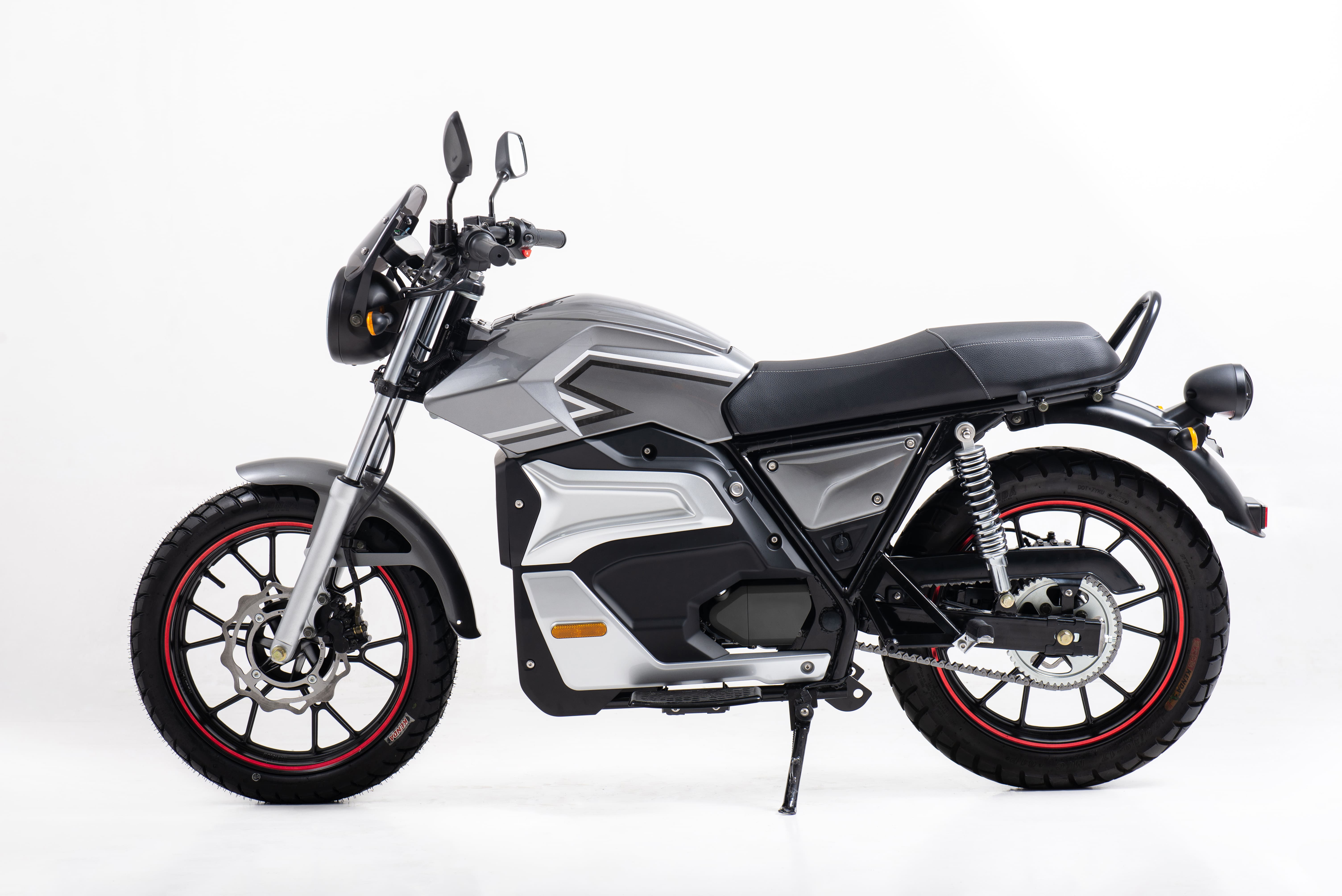

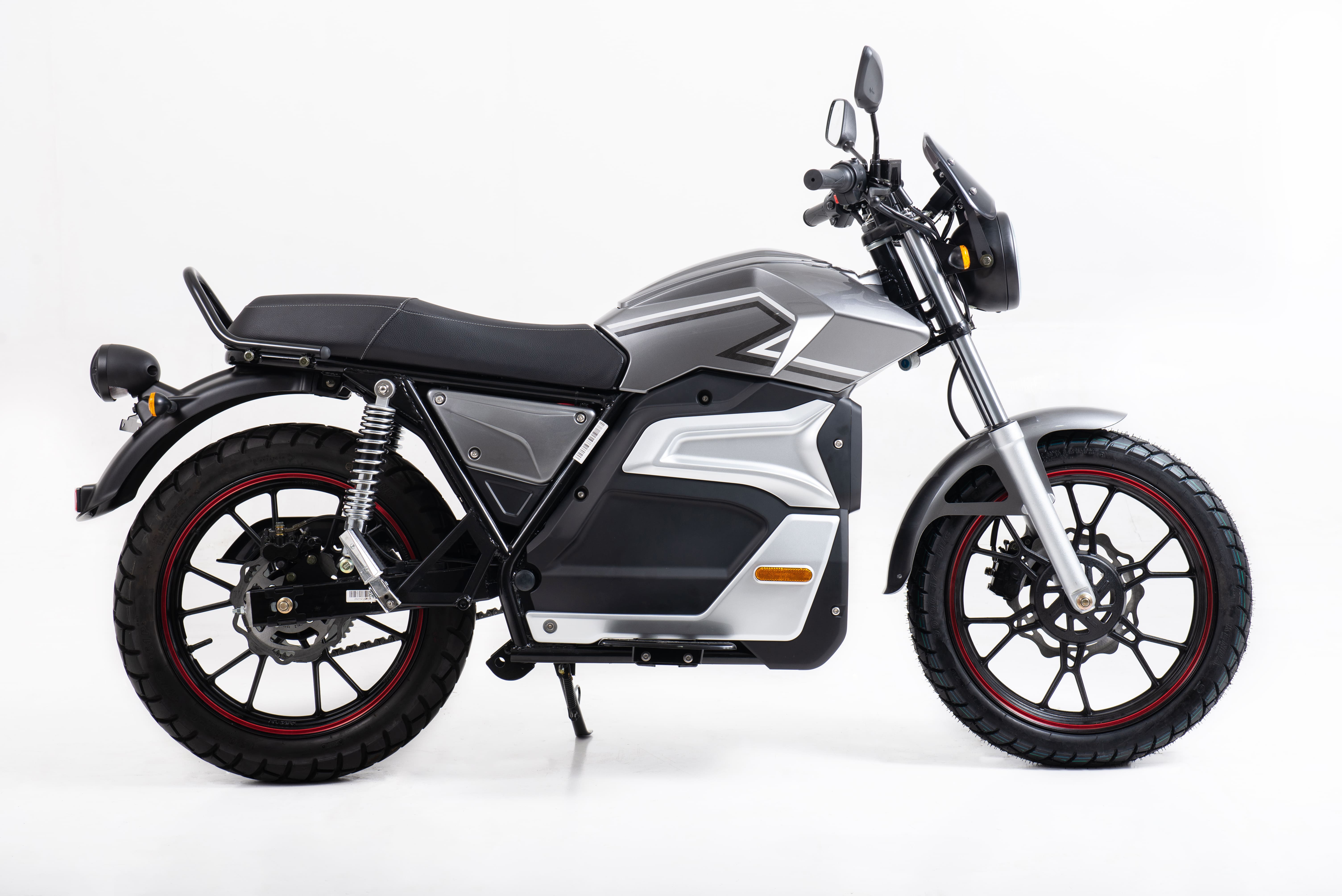

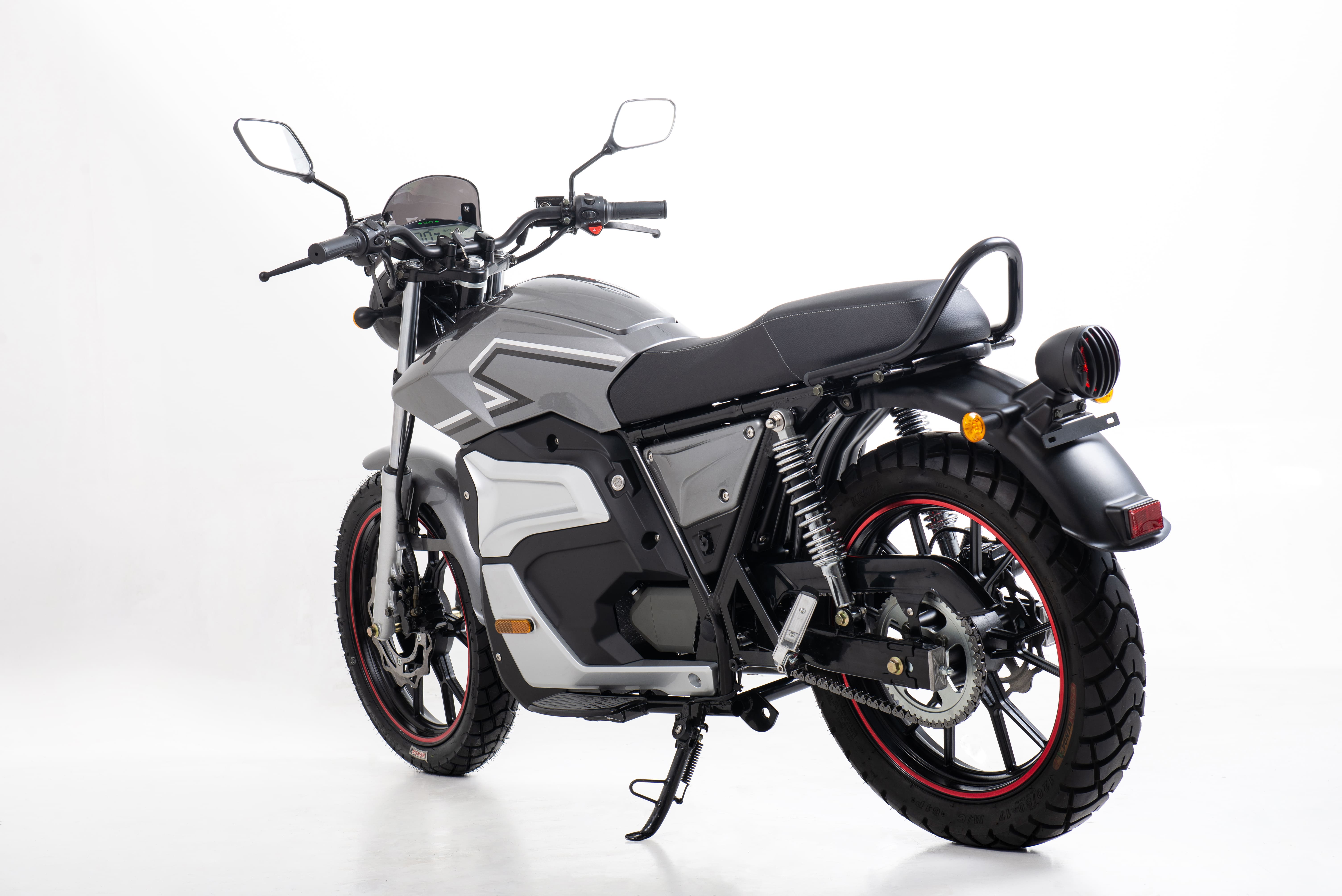

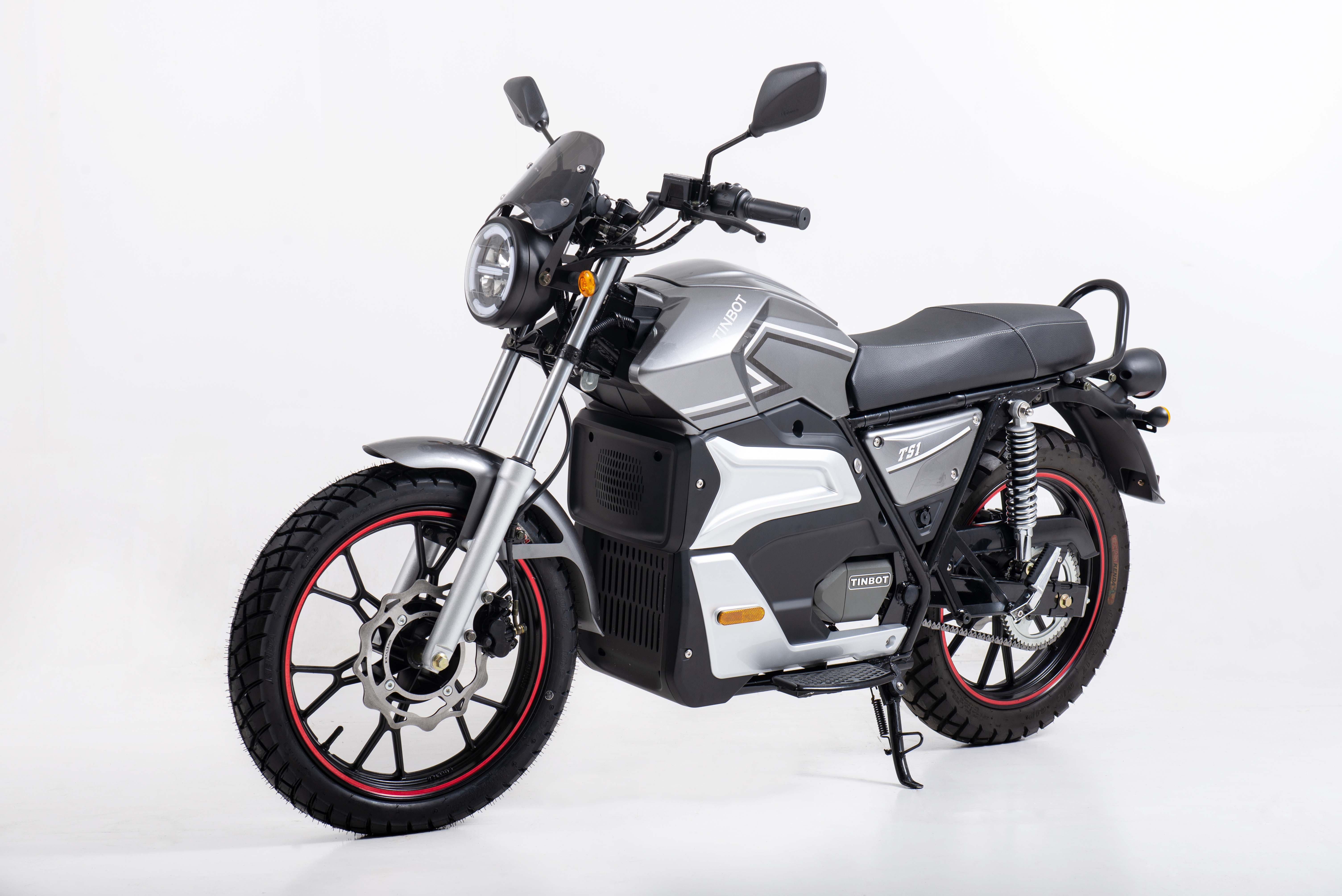

CS1

Sleek and Innovative Design

All Classic Design Motorcycle

CS1's 10” ground clearance and 5-way adjustable rear suspension ensure a smooth ride over varied terrain.

CS1 boasts features such as a keyless operation system, integrated alarm, and precision-engineered hydraulic disc brakes.

Higher low-speed torque
Faster speed-up performance

Peak Power

Maximum Torque

Climbing Ability

Specifications
Battery
Battery Chemistry/Capacity	NMC 72V30AH Swapping*2
Battery IP	IP67
Battery Qty	2
Motor
Motor Type	Mid Drive Motor
Mid Drive Motor	7KW/12KW
7KW/12KW	80NM/330 N.m
Charger
Input Voltage / Current	10A
Charging Time 0-100%（1 battery）	3hours
Speedometer
Display Type / Size	TFT
Display Connectivity 1-wire/RS485/CAN	CAN
IOT Enable	Yes
Performance
Max. Speed (GPS)	100KM/H
Range(Average Speed with 75Kgs driver)	130KM@45KM/H 110KM@65KM/H 75KM@80KM/H
Climb Capacity	18°
Basic Info
Kerb Weight	120 kg
L x W(With handle) x H (No mirrors）	2080X830X1240MM
Wheelbase	1370MM
Ground Clearance	200MM
Homologation	EEC l3e-A1, Euro5 810MM
Seat Height	F/R:Disc brake+CBS
Tyre F/R	F/R:Disc brake+CBS
Brake F/R	F: Hydraulic damping, front suspension
Fr/Rr Suspension	R:Hydraulic damping with spring, dual-sided suspension
Light	LED
Color	Customized
